2x2 F
Performance:
Model
22F-1315-A
Operating wavelength
nm
1260~1620
wavelength
nm
1310&1550
Insertion loss
dB
Typ:0.7 Max:1.1
Return loss
dB
SM≥50
Cross talk
dB
SM≥55
PDL
dB
≤0.05
WDL
dB
≤0.25
TDL
dB
≤0.25
Repeatability
dB
≤±0.02
Voltage
v
3.0 or 5.0 (+/-0.5)
Operating life
Time
≥107
Switch time
ms
≤8
Power handling
mW
≤500
Operating temperature
℃
-20~+70
Storage temperature
℃
-40~+85
Size
mm
28×12×8.2±0.2
Pin Definition:
Type
Pin
definition
Power
Condition monitoring
MCSW-2x2
1
5
6
10
2-3
3-4
7-8
8-9
Non-latching
P1-P4
P2-P3
--
--
--
--
Close
Open
Open
Close
P1-P3
P2-P4
V+
--
--
GND
Open
Close
Close
Open
Latching
P1-P4
P2-P3
--
--
GND
V+
Close
Open
Open
Close
P1-P3
P2-P4
V+
GND
--
--
Open
Close
Close
Open
Path Diagram:

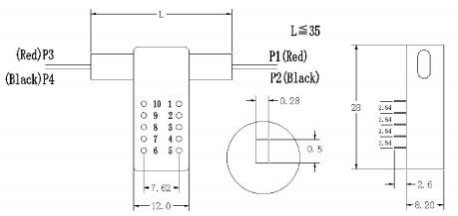

Production Size:
Order Information:
XXXX—
XX—
XXXX
Wavelength
Operating Voltage
Fiber Type
Tube Type
Fiber Length
Connector
0850—850
1315— 1310&1550
……
3L—3v, latching 5L—5v, latching 3N—3v, Non-latching 5N—5v, Non-latching
1—SM
2—MM 62.5/125
3—MM 50/125
1—250um
2—900um
00—特殊
05—0.5m±5cm
10— 1m±5cm
15— 1.5m±5cm
20—2 m
……
0—NO
1—FC/PC
2—FC/APC
3—SC/PC
4—SC/APC
5—LC/PC
6—LC/APC
