DWDM 20CH MUX

Channel Space (GHz)

100

Channel Number

1*20

Center Wavelength (nm)

ITU Grid

Center Wavelength Accuracy (nm)

± 0.05

Channel Passband (@-0.5dB) (nm)

0.22

UPG(nm)

1260~1510&1582~1640

EXP(nm)

1525~1565(exception Use the channel)

Fiber Type

SMF-28e with 900um loose tube or customer specified

IL (dB)

Max: 5.4db; Typical: 5.2db

Dual Test Ports

23

EXP

6.0

UPG

0.8

Passband Ripple (dB)

0.4

Isolation (dB)

Adjacent Channel

25

Non-Adjacent Channel

40

PDL (dB)

0.2

PMD (ps)

0.1

RL (dB)

45

Directivity (dB)

50

Maximum Optical Power (mw)

300

Operating Temperature (℃)

-40~85

Storage Temperature (℃)

-40~85

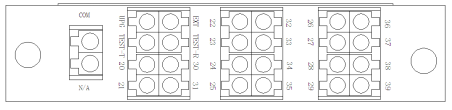

LGX BOX Package (mm)

129*29*76.2
