8CH MUX/DEMUX
1. Mechanical Specification
Performance Specifications (产品指标)
Parameter
8 Channel EAST & West MUX/DMUX
Channel Wavelength/通道波长(nm)
ITU 100 GHz Grid(C31-C38)
Center wavelength Accuracy/中心波长精度(nm)
±0.05
Channel Spacing (GHz) /信道间隔GHz)
100
Channel Passband (@-0.5dB bandwidth) (nm)/信道带宽
≥0.22
Insertion Loss/插入损耗(dB) EAST & West
≤2.8(with Connector)
Channel Uniformity/信道均匀性(dB)
≤1.0
Channel Ripple/信道平坦度(dB)
≤0.3
Isolation信道隔离度(dB)
Adjacent/相邻
>28
Non-adjacent/非相邻
>40
Polarization Dependent Loss/偏振相关损耗(dB)
<0.15
Polarization Mode Dispersion/偏振模式色散(PS)
<0.1
Directivity/方向性(dB)
>50
Return Loss/回损 (dB)
>45
Maximum Power Handling/最大工作功率(mW)
500
Operating Temperature/工作温度(℃)
-20~+70
Storage Temperature /储藏温度(℃)
-40~85
2. Case
Parameters
Values
Packaging Dimension
LGX (EAST & West)
Fiber Type
SM28e
Connector
LC/PC
3. Configuration
3.1 Port Insertion Loss
No
Wavelength(nm)
IL(dB) Max (DEMUX)
IL(dB) Max. (mux)
1
1552.52 C31
2.8
1.0
2
1551.72 C32
2.6
1.3
3
1550.92 C33
2.4
1.6
4
1550.12 C34
2.2
1.9
5
1549.32 C35
1.9
2.2
6
1548.51 C36
1.6
2.4
7
1547.72 C37
1.3
2.6
8
1546.92 C38
1.0
2.8
3.2.The principle diagram of the module

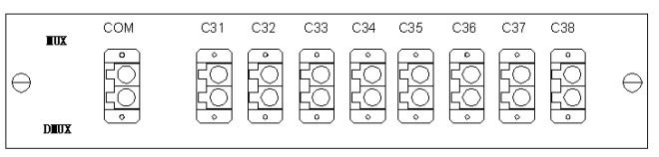

3.4 single LGX(EAST or West) WITH DWDM MUX/DMUX

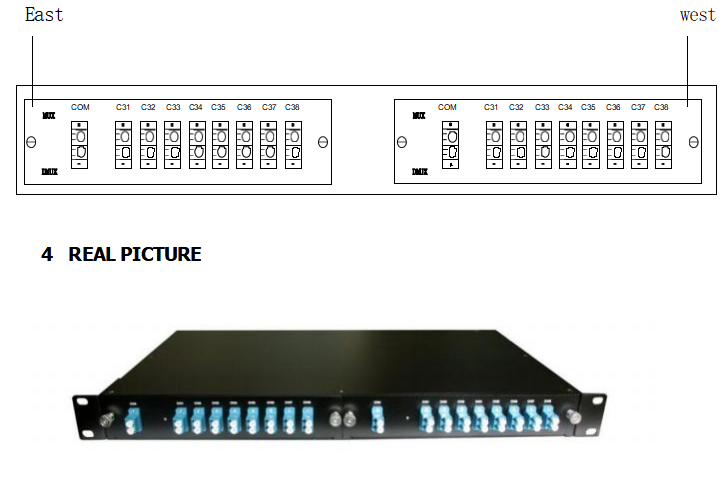

3.5
East
LGX(EAST and West) loaded in on a 19’1U Rack
